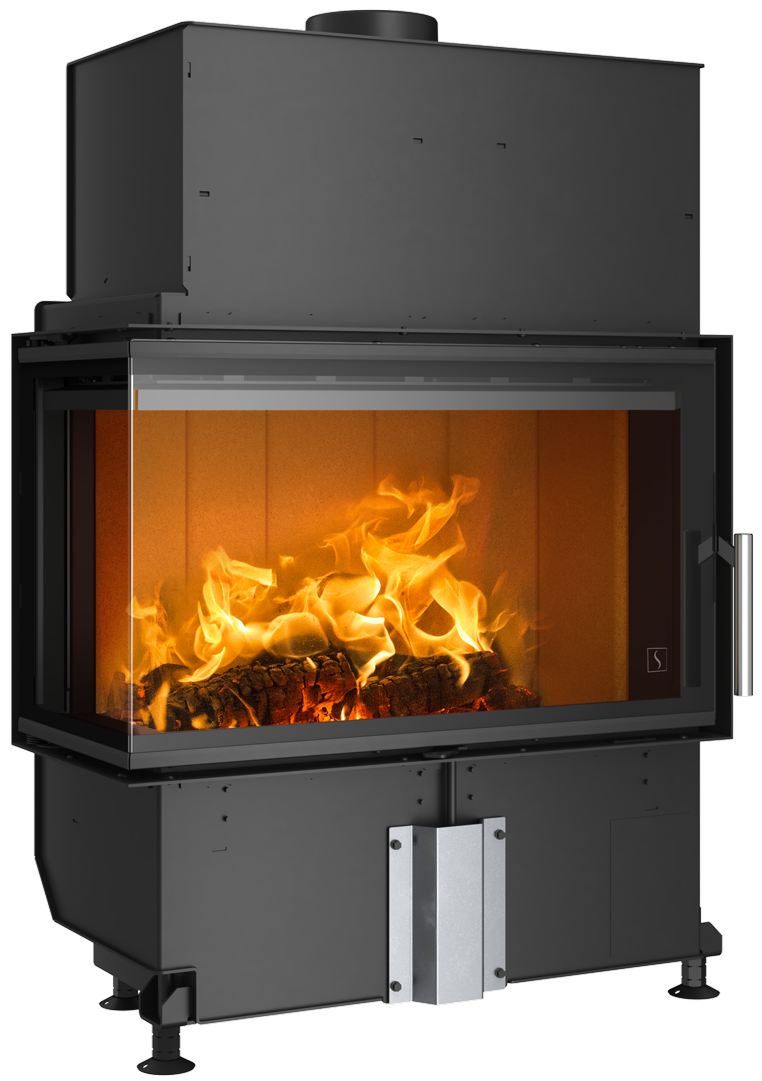

SCAN 5107 FL

Timeless trendy

Description

Distinctive yet discreet, Scan 5107 lets you enjoy the view of the fire with the two-sided glass door, giving the feeling of sitting by an open fireplace. Air intake is regulated by a single control, and a black frame around the glass and a beautiful handle complete the overall impression. Choose between a right or left hinged model, that can be installed centrally or fits perfectly into a corner.

Versatile fireplace insert
Angled glass
Easy air control with just one lever

Size

Height: 1,033 mm

Width: 726 mm

Depth: 419 mm

Colors

Black paint (Selected)

Technical Specifications
Documents

Specifications

Height 1033 mm
Width 726 mm
Depth 419 mm
Weight 149 kg
Log size up to 50 cm
Flue outlet Ø 149 mm

Nom output 9.1 kW
Efficiency 80 %
CO Emission 0.14 %
Dust Product Emission 34 mg/Nm³
NOx Emission 80 mg/Nm³
OGC Emission 61 mg/Nm³

NEW - Installation- and User Manual (3.73 MB)

NEW - Declaration of Performance (349.87 KB)

Statement terms (345.76 KB)

FDV - documentation (123.39 KB)

Declaration of Conformity (178.78 KB)

Data sheet (63.57 KB)

Ecolabel datasheet (49.59 KB)

Ecolabel (963.77 KB)
