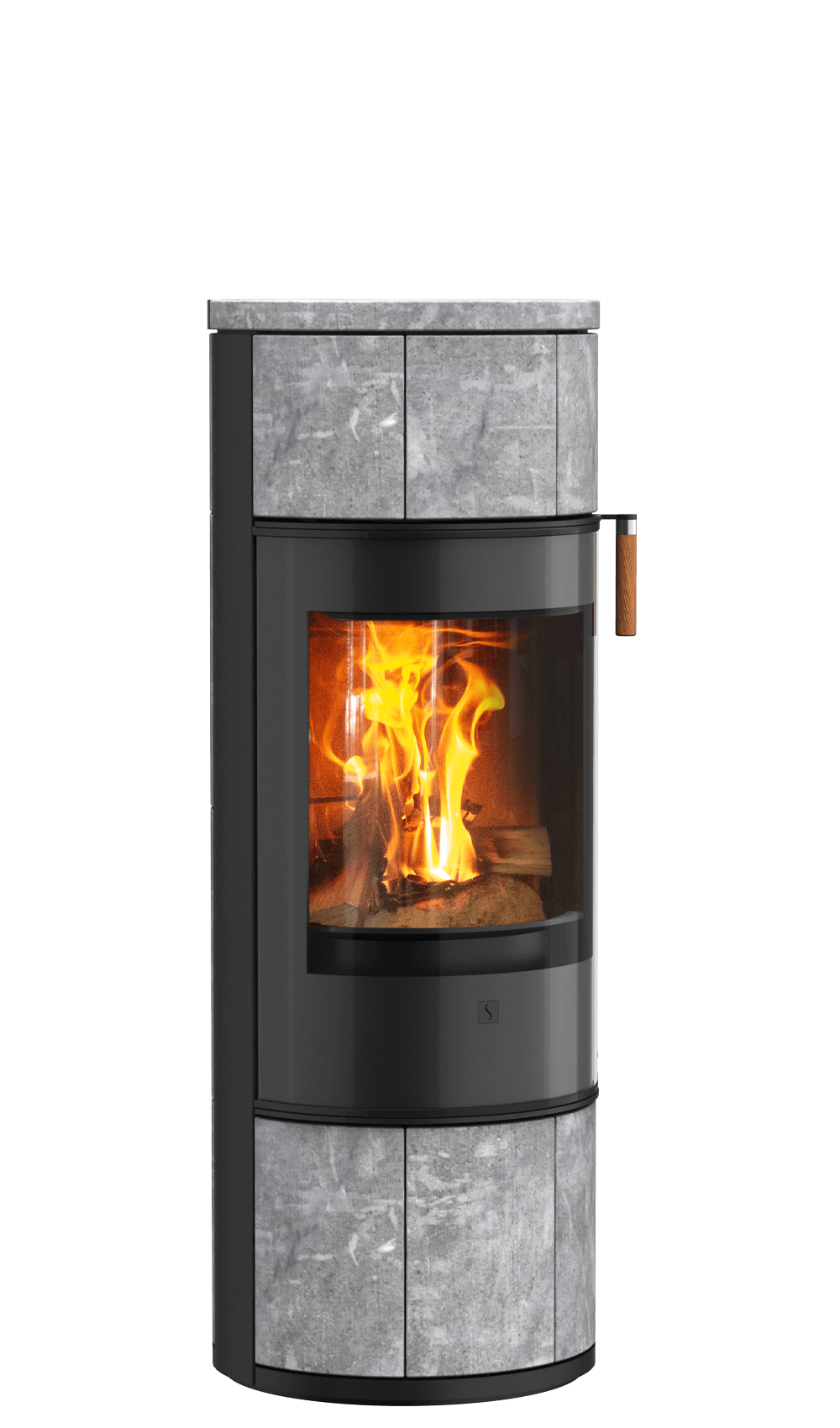

SCAN 84 MODERN SOAPSTONE New Product

Efficient heat in a timeless design with soapstone

Description

The Scan 84 series combines high heat output with a clean, modern design. With soapstone side panels and top plate, it offers not only a unique appearance, but also lasting warmth – even after the fire has gone out. The soapstone stores heat and releases it slowly over time, increasing comfort and reducing wood consumption. The stove door features a convenient soft-close function for smooth and safe closing. The series is available in two heights, with an architectural design that suits both modern and traditional interiors.

Soapstone retains heat long after the fire has gone out
Soft-close door for safe and silent operation
Timeless design with elegant door finish

Size

Height: 1,279 mm

Width: 492 mm

Depth: 465 mm

Colors

Black paint (Selected)

Clean burn

Technical Specifications
Documents

Specifications

Height 1279 mm
Width 492 mm
Depth 465 mm
Weight 192 kg
Log size up to 35 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 5.0 kW
Efficiency 81 %
Heating capacity up to 100 m²
Heating capacity cubic up to 300 m³
CO Emission 979.00 %
Dust Product Emission 22 mg/Nm³
NOx Emission 95 mg/Nm³
OGC Emission 56 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes
Ridding grate Yes

Installation- and User Manual (6.58 MB)

Statement terms (476.31 KB)

Product dimensions (143.41 KB)

Exploded view and spareparts (2.01 MB)

Ecolabel datasheet (39.16 KB)

Data sheet (49.71 KB)

Declaration of Performance (354.21 KB)

Declaration of Conformity (270.77 KB)
