Wood

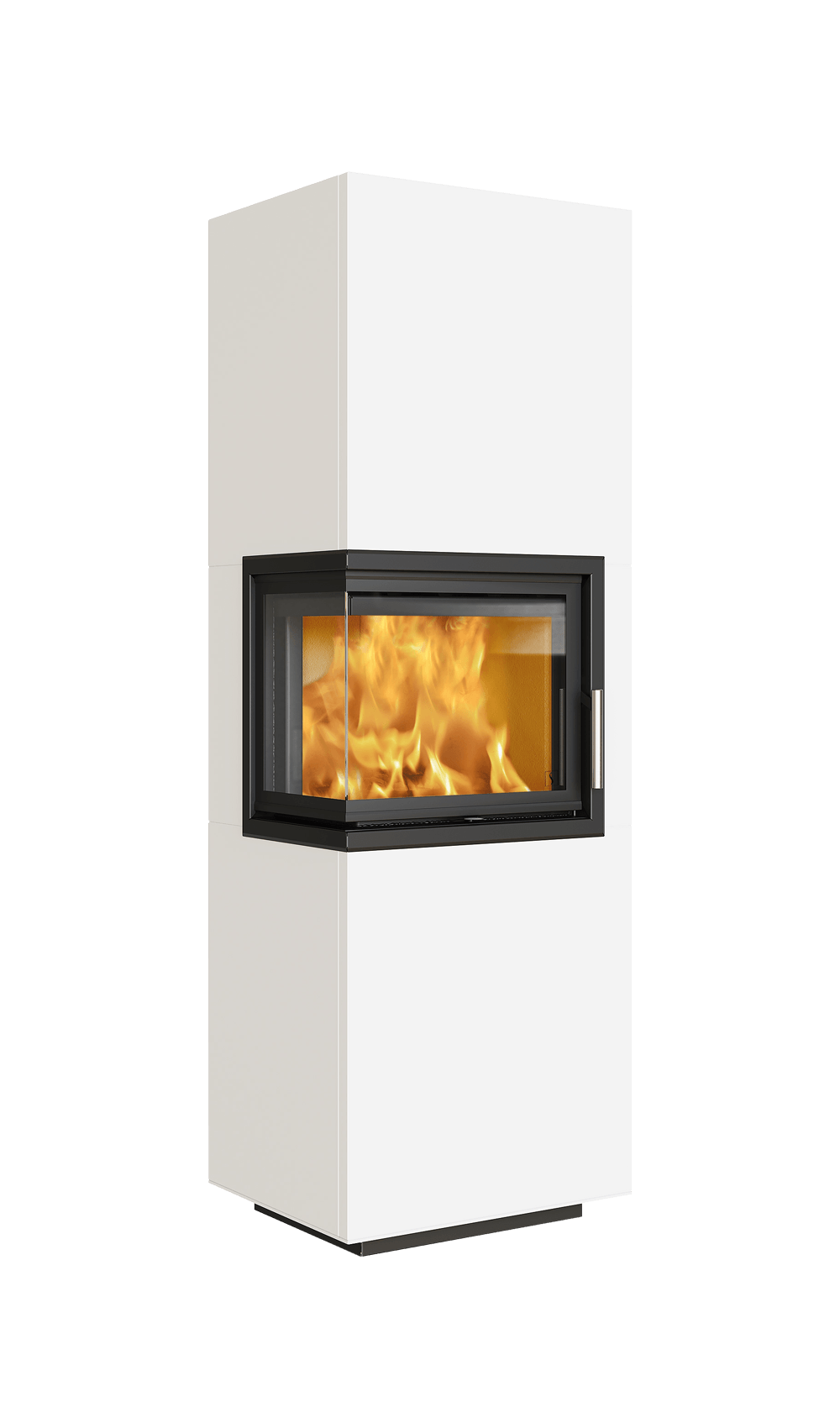

SCAN 5006-S FL

Timeless trendy

Description

Distinctive yet discreet, Scan 5006 and 5007 lets you enjoy the view of the fire with the two-sided glass door, giving the feeling of sitting by an open fireplace. Air intake is regulated by a single control, and a black frame around the glass and a beautiful handle complete the overall impression. Choose between a right or left hinged model, that can be installed centrally or fits perfectly into a corner.

Clean lines
Both radiant and convection heat
L-shaped view of the flames

Size

Height: 1,800 mm

Width: 592 mm

Depth: 495 mm

Colors

Black paint (Selected)

Clean burn

Technical Specifications
Documents

Specifications

Height 1800 mm
Width 592 mm
Depth 495 mm
Weight 190 kg
Log size up to 33 cm
Flue outlet Ø 149 mm
Flue exit options Top / Rear

Nom output 4.5 kW
Efficiency 84 %
CO Emission 0.09 %
Dust Product Emission 38 mg/Nm³
NOx Emission 99 mg/Nm³
OGC Emission 64 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes

Installation- and User Manual (9.23 MB)

Statement terms (254.23 KB)

Product dimensions (199.09 KB)

Exploded view and spareparts (612.95 KB)

Declaration of Performance (220.96 KB)

Declaration of Conformity (203.25 KB)

Data sheet (78.15 KB)

Ecolabel datasheet (37.46 KB)

Ecolabel (933.47 KB)
