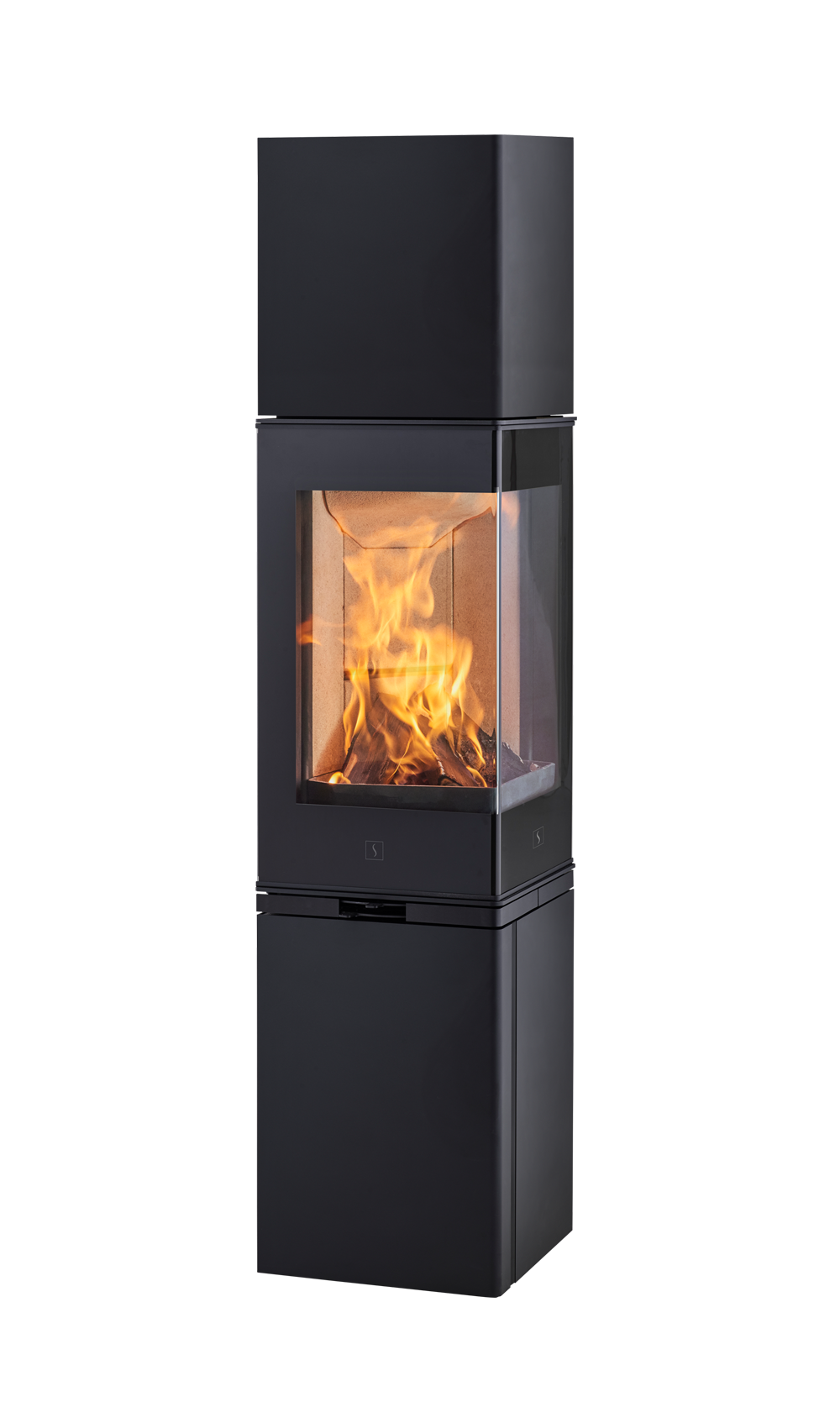

Wood

SCAN 80-4

Modern and ingenious

Description

Scan 80-3 has a closed base, while Scan 80-4 has a pratical door for wood storage in the base. If the stove is to be placed in a corner, it is available with a special high top with side outlet.

Elegant prismatic shape
Large view to the flames
Possibility for heat accumulating stones

Size

Height: 1,670 mm

Width: 385 mm

Depth: 385 mm

Clean burn

Technical Specifications
Documents

Specifications

Height 1670 mm
Width 385 mm
Depth 385 mm
Weight 110 kg
Log size up to 30 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear / Side

Nom output 6.0 kW
Efficiency 84 %
Heating capacity up to 120 m²
CO Emission 0.07 %
Dust Product Emission 14 mg/Nm³
NOx Emission 84 mg/Nm³
OGC Emission 61 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes

NEW - Installation- and User Manual (4.48 MB)

Installation- and User Manual (4.79 MB)

NEW - Declaration of Performance (237.58 KB)

Declaration of Performance (220.32 KB)

Statement terms (174.62 KB)

Product dimensions (260.96 KB)

Exploded view and spareparts (850.78 KB)

Declaration of Conformity (259.16 KB)

Data sheet (39.6 KB)

Ecolabel datasheet (78.98 KB)

Ecolabel (76.72 KB)
